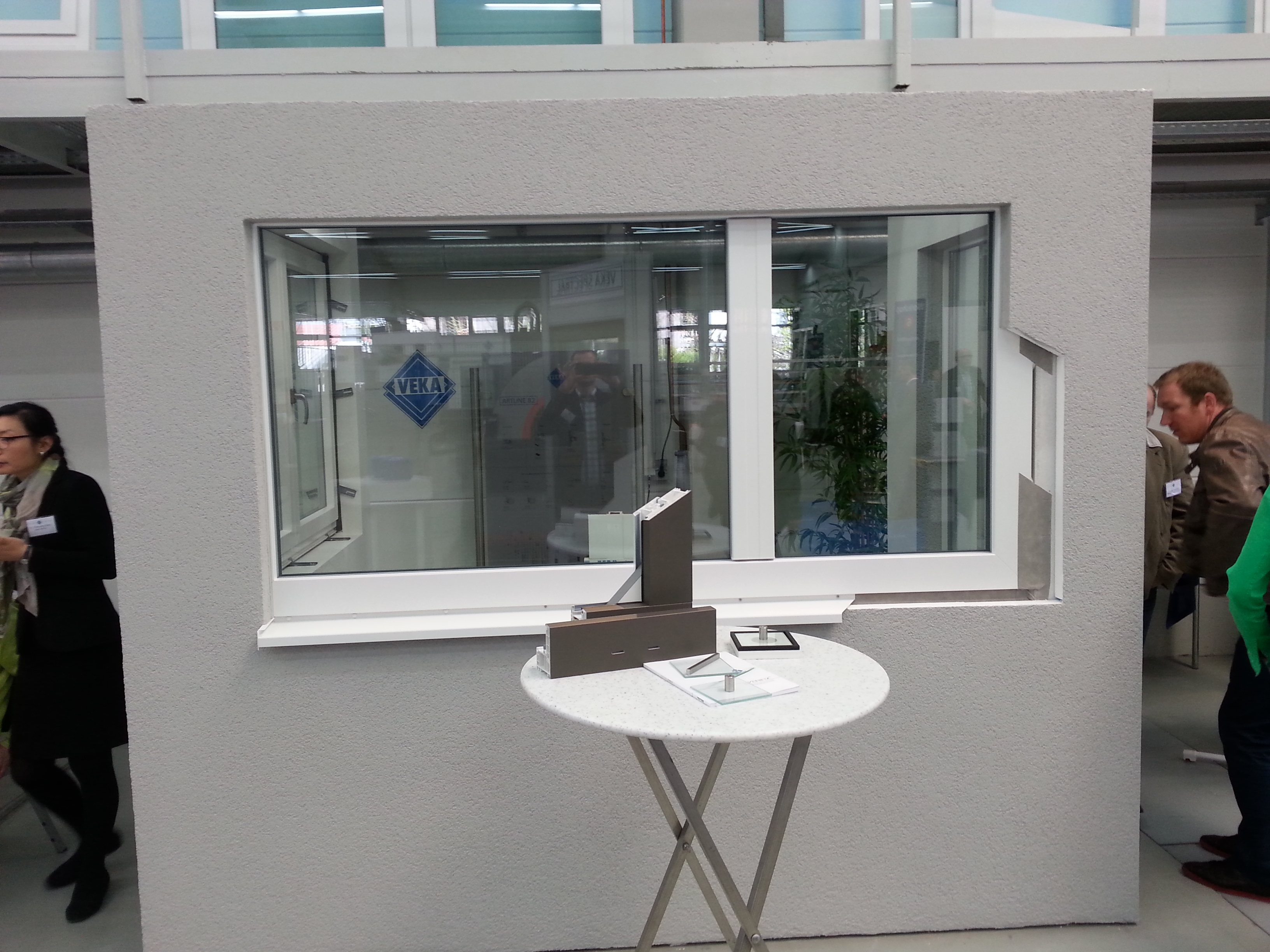

1. Passiv window Veka Artline it is a profile of 6-chambres frame and 5-chambres sash, which have 82 mm width each. Veka Artline meets the norms of the highest profile class: A class (width of external walls 2,8-3,2 mm).
2. Artline windows are equipped with solid steel reinforcement (1.5 mm) - that makes them to be stable and allows fixing fittings. Reinforcement in frame has square shape 30x30, reinformance in sash is open and double fold (unique solution in window technology).
3. Filling the bottom groove helps to keep clean the most sensitive part of the window - bottom section of the frame.
4. The window is equipped with triple gasket set made of most durable and resistant to aging material (EPDM). They are fixed with a drop 15° - guarantee excellent drainage. The gaskets are replaceable and - unlike welded, they ensure better tightness in the corners of the windows.
5. Depth of glass setting is 24 mm. The greater the depth of glass setting, the more difficult to push the glass by the burglar.
Maco Invisible - invisible fittings, hinges hidden..
PVC windows with activPilot Select are timeless elegant. Widow hinges are hidden, so it's a perfect offer for clients appreciating beauty and not unconventional solutions. Windows equipped with this fittings fit perfectly to modern architecture but also are suitable for renovated vintage buildings. This fittings allow to keep the original style of this historic buildings.
|
- fittings totally hidden - increase aesthetics of the window
- the contact pressure can easily be adjusted with i.S. cams; they seal your window tightly
- roller cams for ease of operation
- weight limit for fitting to 130kg, with possibility of extension to 150kg
- corner hinge can be regulated in 3 directions
- lock the wrong handle position
- micro ventilation
- anti-burglary catch (in T&T sash)
|
